Description
Fischer DuoTec 10 Cavity Fixings

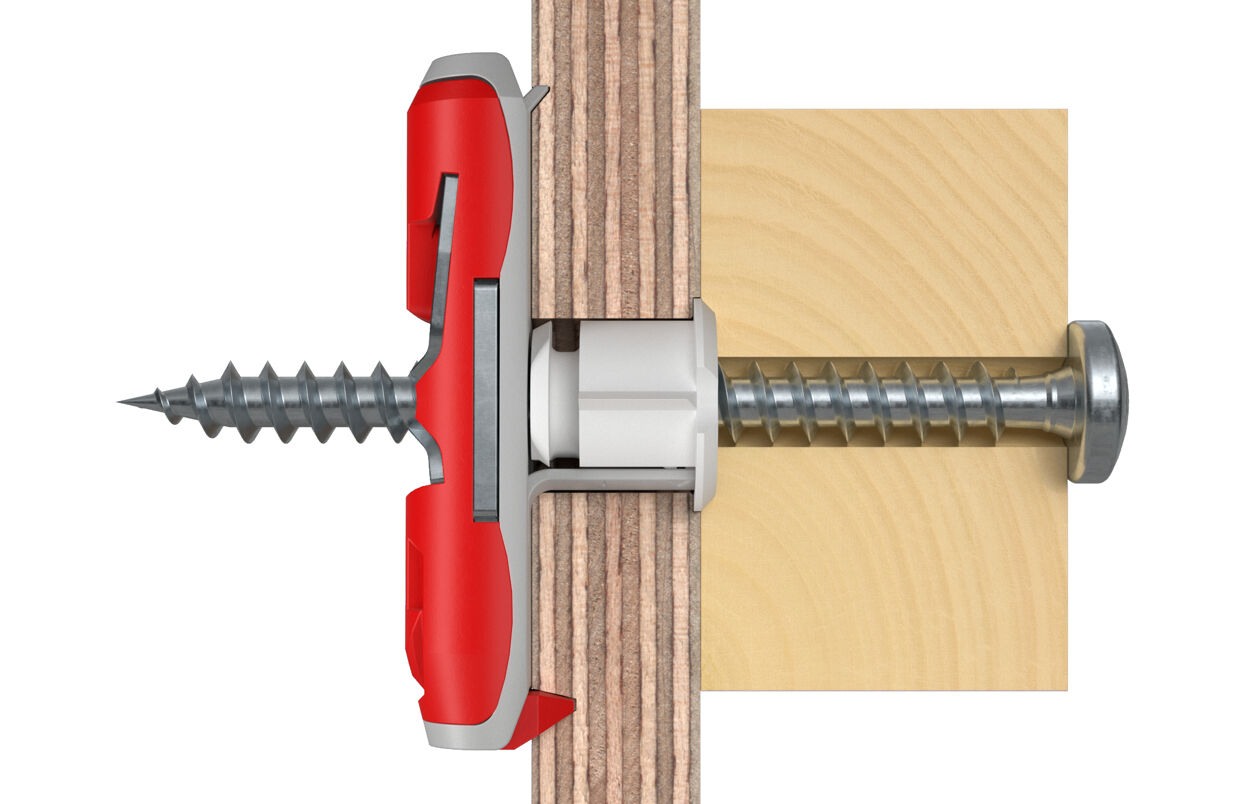

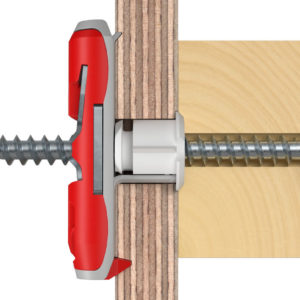

Easy to install nylon toggle for high loads in all panel building materials
Advantages

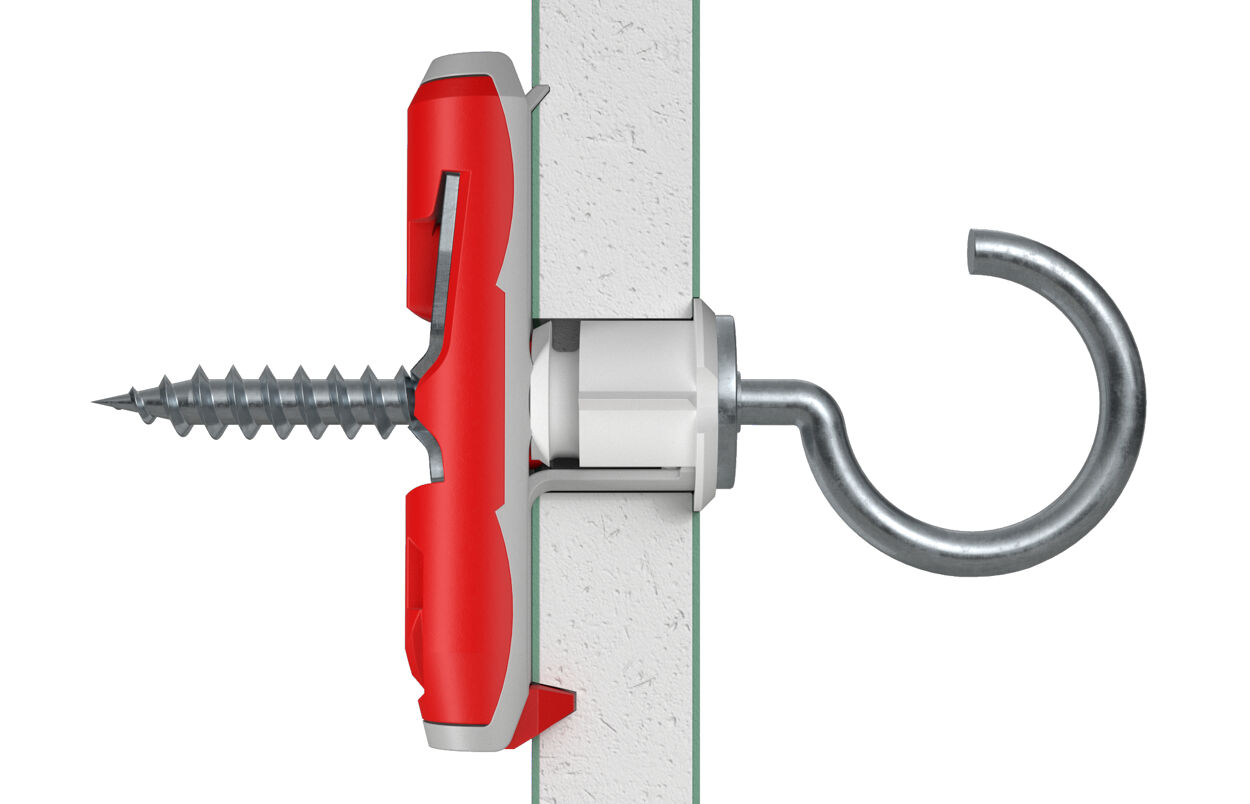

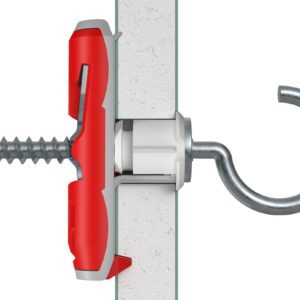

- Flexible screw mount allows for the use of screws and hooks with different thread shapes.
- Glass fibre-reinforced plastics and a metal skeleton insert (fischer DuoTec 12) allow the toggle to handle heavy tensile and transverse loads in all panel building materials.
- Soft grey nylon contact surface distributes the load over the panel surface, thereby minimising weakening of the supporting building material.

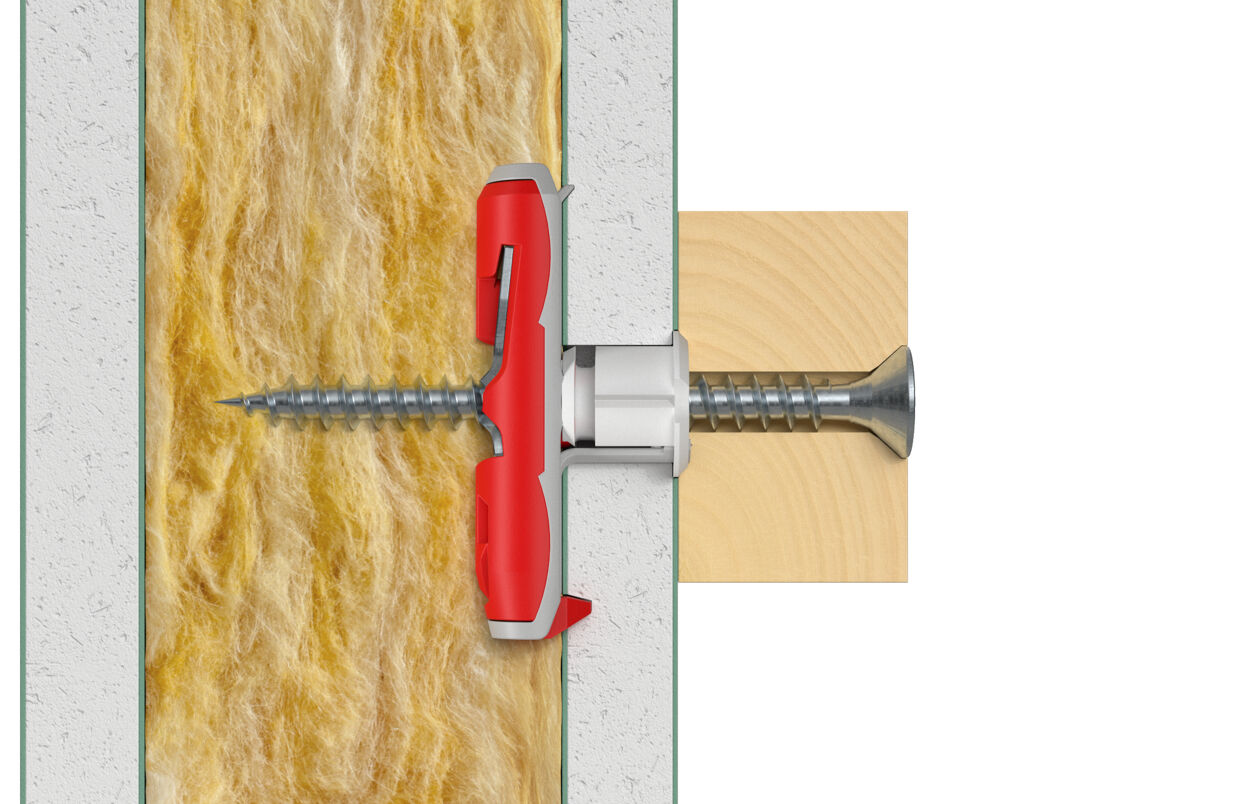

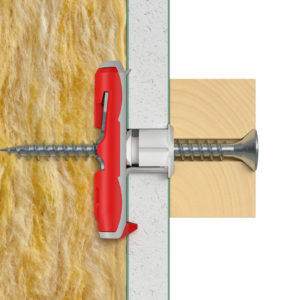

- Standard drill hole diameters and short tilting element for easy installation in narrow cavities, including cavities with insulation.

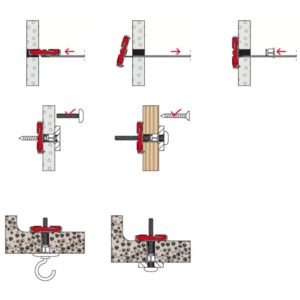

- White flush sleeve with snap function allows the plug to be pre-installed quickly and securely in the drill hole.

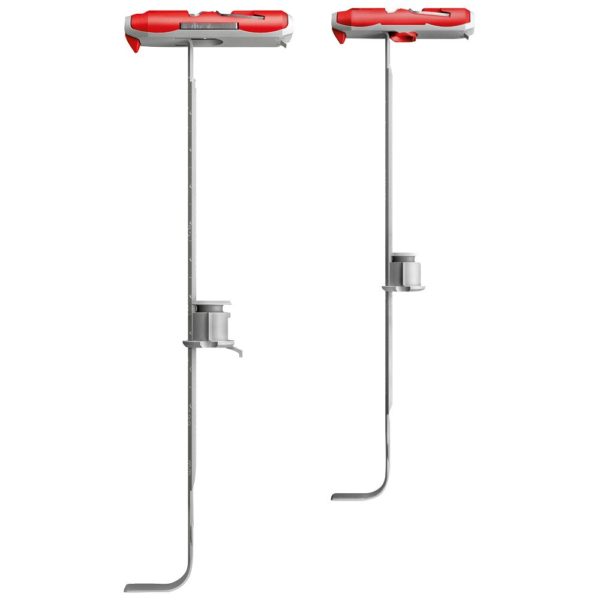

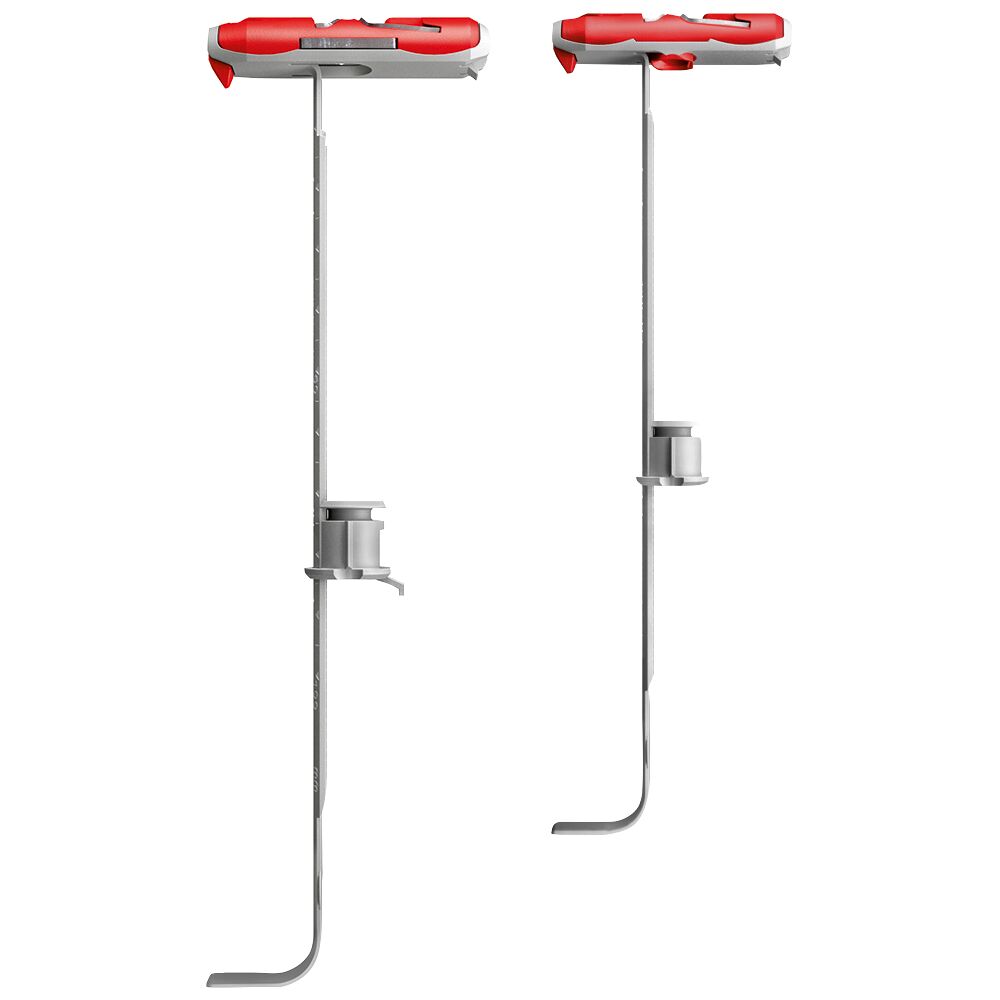

- With scale on the grip strap (fischer DuoTec 12) for determining the required screw length (scale value + 20 mm).
| Drill diameter | 10 mm |
| Min. panel thickness |
9.5 mm |
| Max. panel thickness |
55 mm |
| Min. cavity depth | 40 mm |
| Screw diameter | 4.5 – 5.0 mm |
| Screw length | ≥ dp + tfix +20 mm |
| Min. drill hole depth | ls + 10 mm |
| Min. screw length | tfix + 60 mm |
| Anchor length | 50 mm |
| Max. fixture thickness | — |
| Contents | 20 x DuoTec 10 |
| Packaging | Folding box |
| Amount | 20 pcs. |
